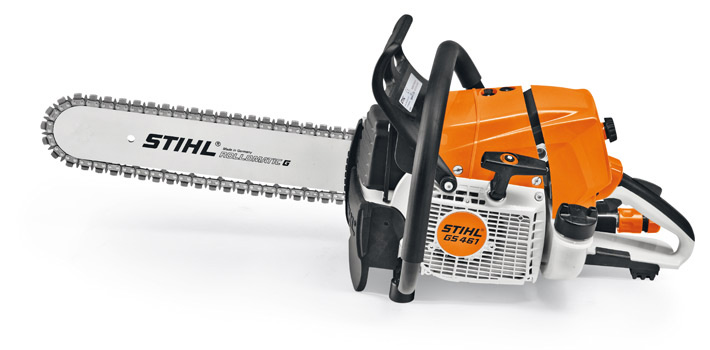

GS 461 Concrete saw

Handles like a chainsaw, but with the power of a cut-off machine: the GS 461 concrete saw from STIHL. It’s ideal for cutting concrete, masonry, concrete pipes and ductile cast iron pipes. But what really makes it stand out from the crowd is its impressive cutting depth, great power-to-weight ratio and ability to cut precise corners. The guide bar perfectly matches the tool and features nozzles that point forward for effectively supplying the chain with water. And the special diamond saw chain transforms the engine power into superior cutting performance.

PLEASE CONTACT OUR SALES TEAM FOR A QUOTATION ON THIS ITEM

Category: Tag:
Brands:
Brands

GS 461 Concrete saw

Technical data

Weight Pounds 1) 16.8
Rollomatic E, cutting length “ 16
Vibration value, right m/s2 2) 4
Rollomatic E, cutting length cm 40
Fuel tank capacity oz 26.4
Speed at maximum power Um 9.800
Capacity cu-in 4.67
Performance kW 4.3
Performance PS 5.8
Tank volume l 0.78
Weight kg 1) 7.6
Sound pressure level dB(A) 3) 105
Chain gauge 3/8″
Vibration value, left m/s2 2) 4.5
Capacity cm3 76.5
STIHL saw chain type 36 GBM Diamond saw chain

1) Without fuel, without guide bar and diamond cutting chain
2) K-factor according to DIR 2006/42/EC = 2m / s ²
3) K-factor according to DIR 2006/42/EC = 2.5 dB (A)

The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Approved Dealer for further information.

Standard features

551cd15dbc784e0ca0c2a611d5da8006

STIHL 2-MIX Engine

The STIHL GS 461 features a modern, low-emission STIHL 2-MIX engine. Depending on how the machine is used, 2-MIX engines consume up to 20% less fuel compared to STIHL 2-stroke engines of the same performance class without 2-MIX technology. The 2-MIX engine also delivers great performance with high torque over a wide rpm range.

073030a55a4847b98813940eb15c5f33

Decompression valve

The decompression valve allows the starter rope of the machine to be pulled more easily, ensuring that the operator is able to start the machine comfortably.

d90f8fb5876342b79f8e986c6436f586

36 GBM diamond saw chain

Specially developed for the GS 461, with pre-sharpened diamond segments for wet stone cutting. The chain delivers top performance from the very first cut, for quickly and smoothly cutting concrete, hard stone, brick and ductile cast iron pipes.

01661a6655904aeabe1e39776cb8beef

Rollomatic G guide bar

This guide bar was designed especially for the GS 461 and features water channels. Even the sprocket nose is washed with water. The bar also has a hardened chain track and two additional holes for attaching the saw chain, which extend the tensioning range.

1570b02938da4b50bcab605332b1d09a

Water connection

The water connection fitting is located on the tool and is raised slightly, making it easy to connect the tool to a water source. The water serves to suppress dust, as well as to cool, clean and lubricate the bar and chain.

5d43ec9758fb490d81f3e9a7b073369c

Side chain tensioning

Allowing the chain and tension of the chain to be easily changed.

d85615c2fb8648d391a9dd531917f40d

Sprocket cover with water management

Water is fed through the sprocket onto the guide bar efficiently suppressing dust.

92317f769bb14b78a5ed3247b11796ca

Rubber guard

When cutting walls this large rubber guard protects the engine casing when the guide bar is fully inserted.

497583a34c9449c785b0dc2fcf849c5d

Anti-vibration system

The STIHL anti-vibration system reduces the transmission of engine vibrations. This therefore reduces the strain on your back muscles.

b7f8e5a731514a4db89bdcbfdd598630

Long-life air filter system

The long-life air filter system with HD2 filter and additional filter catches even the finest particles and prevents dust from entering the tool. It protects the engine against wear, so that the tool requires only infrequent servicing.

The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Approved Dealer for further information.
