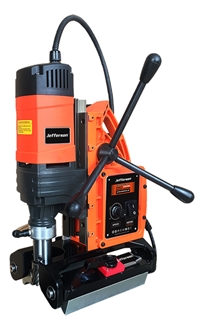

This magnetic drill is designed for drilling holes in steel fabrication work
It is an ideal portable drilling solution equally suited for use in building sites or the workshop environment and can be used to cut in horizontal, vertical and overhead positions
This model features a permanent magnetic locking feature which ensures safe and lasting magnetic adhesion in the event of electrical supply failure
The magnetic base can also swivel to change the angle making it possible to fix to a variety of pipe shapes
The magnetic drill uses an annular hole cutter
(sometimes called a slugger bit) to cut clean and accurate holes without pre-drilling or step drilling
After cutting through the steel the cutter produces a “slug” (a cylindrical lump of steel) that falls from the centre of the cut
Supplied with blow moulded case
- Maximum Cutting Capacity: 35mm
- Maximum Cutting Depth: 35mm
- Magnetic Adhesion: 16000N
- Voltage: 110V
- Motor: 1600W
- No Load Speed: 700rpm
- Dimensions: 340 x 250 x 430mm
- Weight: 11.5kg
