BELLE BMD 300 MINI DUMPER

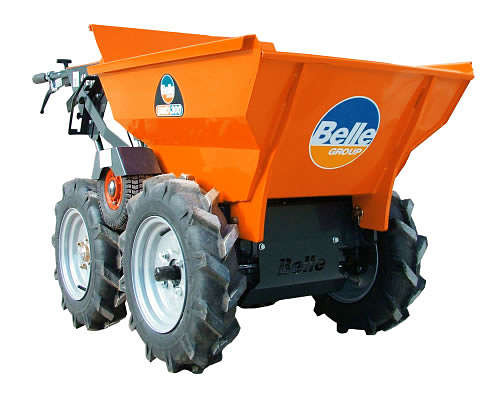

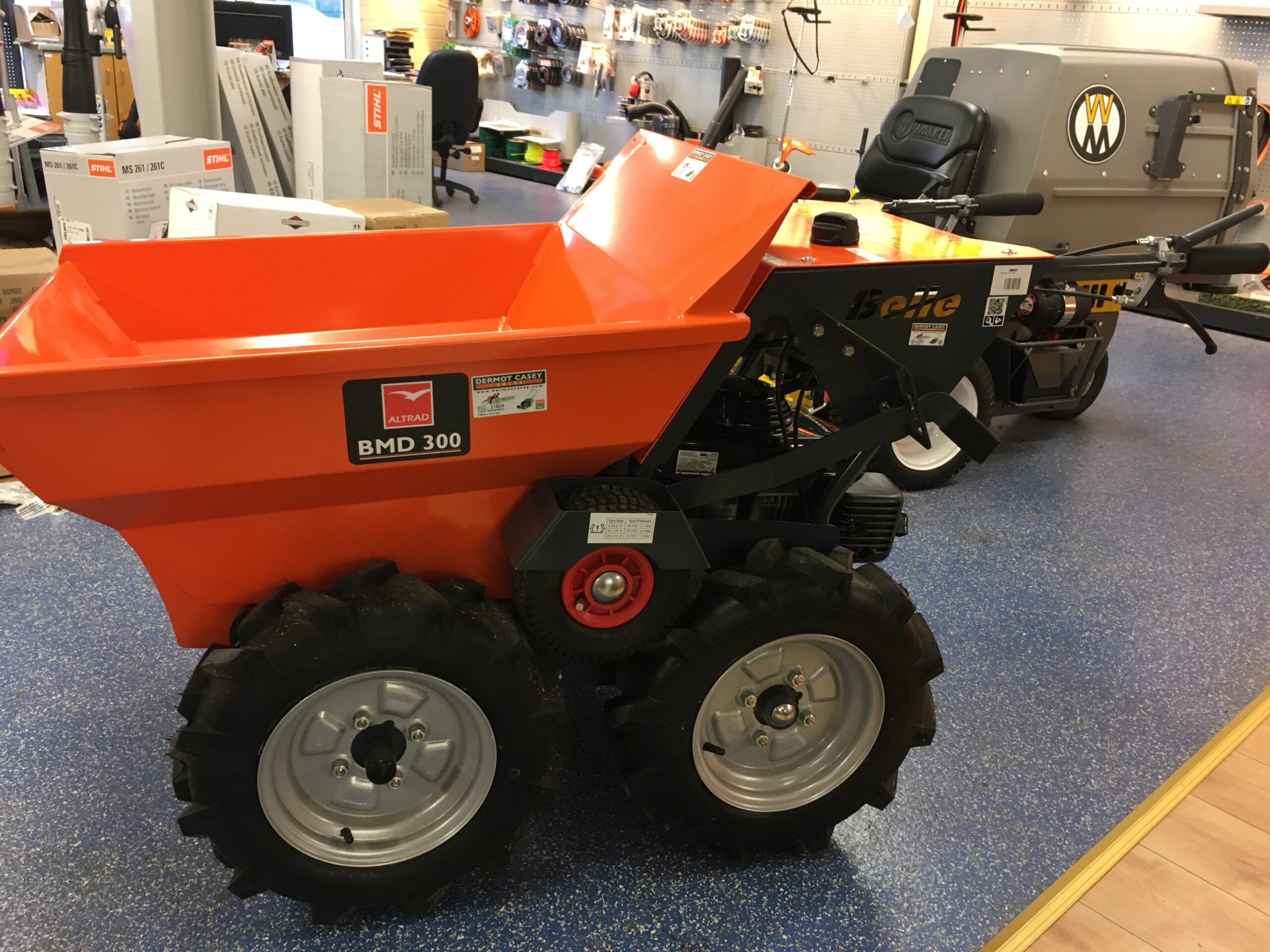

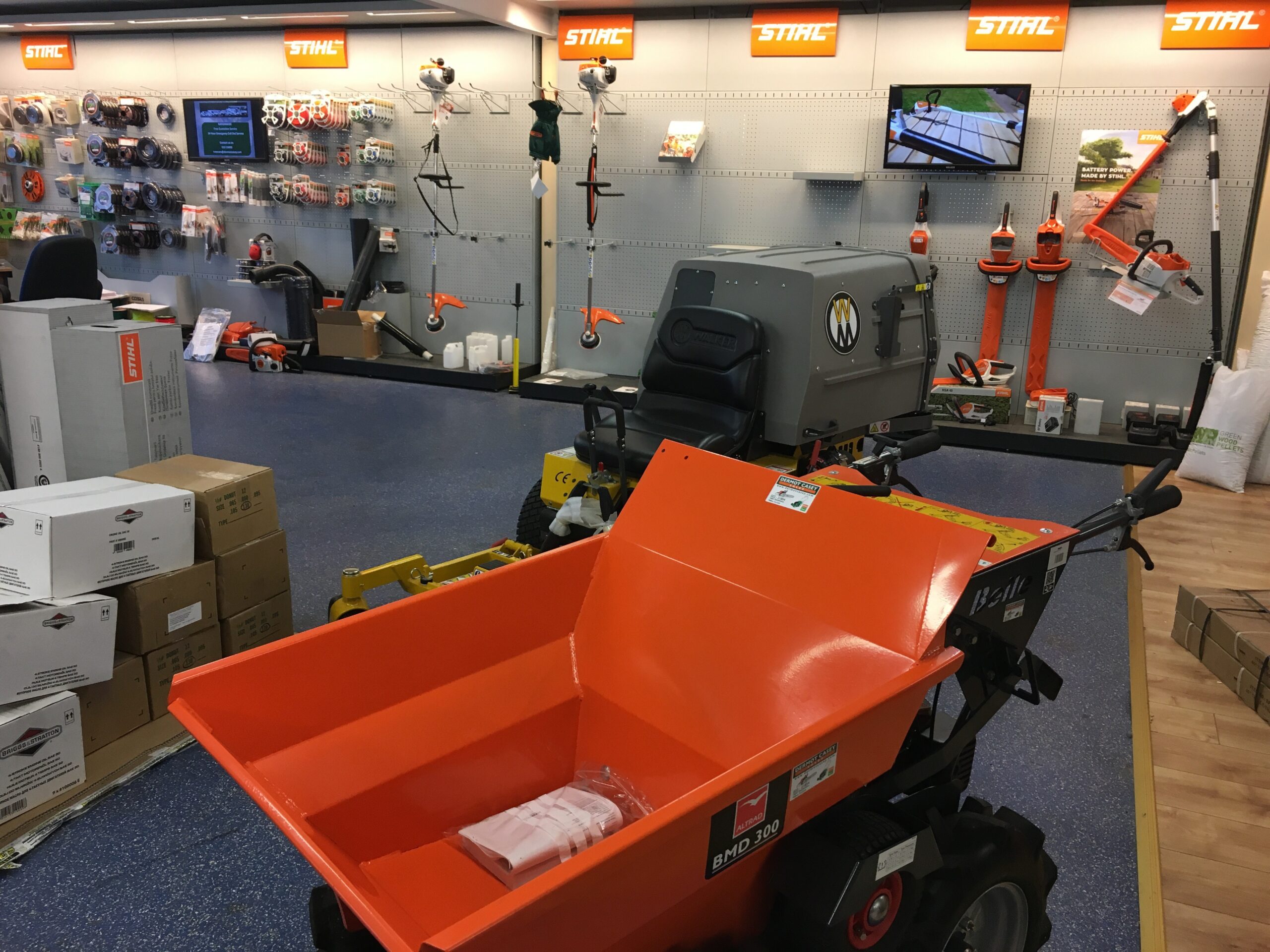

BELLE BMD 300 Mini Dumper.
The BMD motorized pedestrian 4-wheel drive Mini dumper is designed for loading and transporting with speed, greater flexibility, and maneuverability .
It can accommodate all kind of loads, on any terrain, for various applications in construction as well as in landscaping, gardening and agricultural work.
| Model | BMD300 | Max Travel Speed Reverse | (km/h) 2.6 |
|---|---|---|---|
| Machine Width (mm) | 716 | Max Travel Speed Forward | (km/h) 6 |
| Friction Wheel Pressure (bar) | 2.4 | Motor Power | (Hp/kW) 5.5/4 |
| Tyre Pressure (bar) | 2.1 | Noise Level (dB(A)) | 101 |
| Maximum Payload (kg) | 300 | Part No. | BMD01 |
| Maximum Downhill Gradient (°) | 20° | Wheel Base (mm) | 541 |
| Machine Height (mm) | 934 | Maximum Uphill Gradient (°) | 20° |
| Machine Height (Tipping) (mm) | 977 | Machine Weight (kg) | 155 |
| Skip Capacity Heaped Volume (Ltr) | 134 | Machine Length (Tipping) (mm) | 1957 |
| Engine Model | (Honda) GXV160 | Skip Capacity Level Filled (Ltr) | 113 |
| Machine Length (mm) | 1609 |
BELLE BMD 300 Mini Dumper.
The BMD motorized pedestrian 4-wheel drive Mini dumper is designed for loading and transporting with speed, greater flexibility, and maneuverability .
It can accommodate all kind of loads, on any terrain, for various applications in construction as well as in landscaping, gardening and agricultural work.
- Features:
Strong heavy duty design & tipping mechanism to handle loads of up to 300kg
Climbing ability up to 20 degree inclines
4 wheel drive mode and removable center wheel for service
Ideal for small spaces and can pass through doorways
Easy to maneuver when turning or on slopes
Gearbox with 4 forward gears, reverse gear
4 x Multipurpose tyres & disc brakes
Faster, more flexible than track driven dumper
User and service friendly to maximise productivity
Engine position allows easy access & service
Center wheel engaging 4 wheel drive when loaded on rough terrain
The lower position of the skip permits fast tipping with no strain or operator fatigue
Perfectly balanced when working with a full load
Additional bearings to support axle and strengthening plate.
Bottom protection plate to avoid damage by stones.
