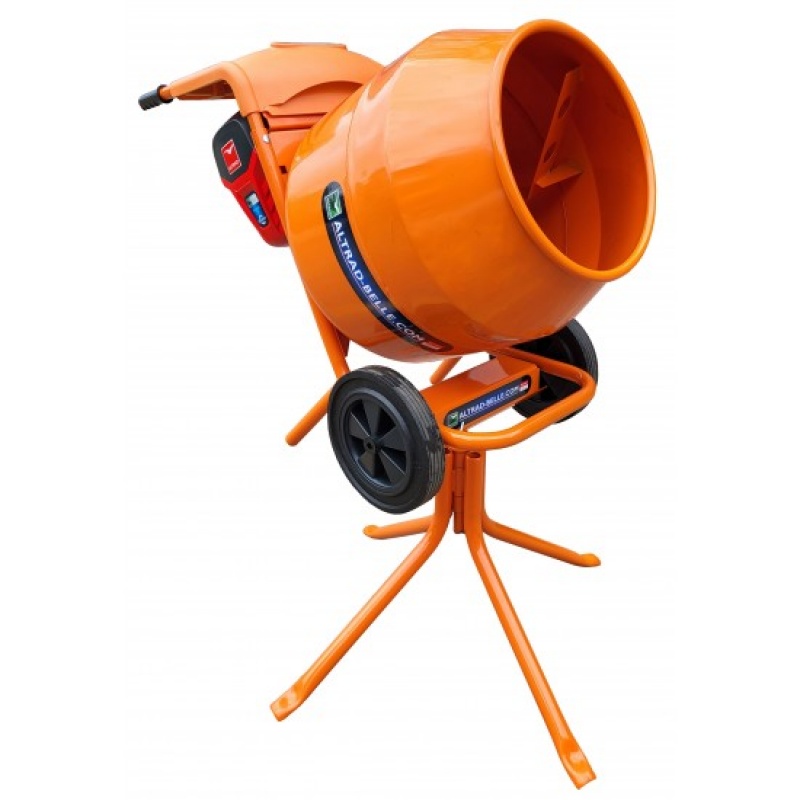

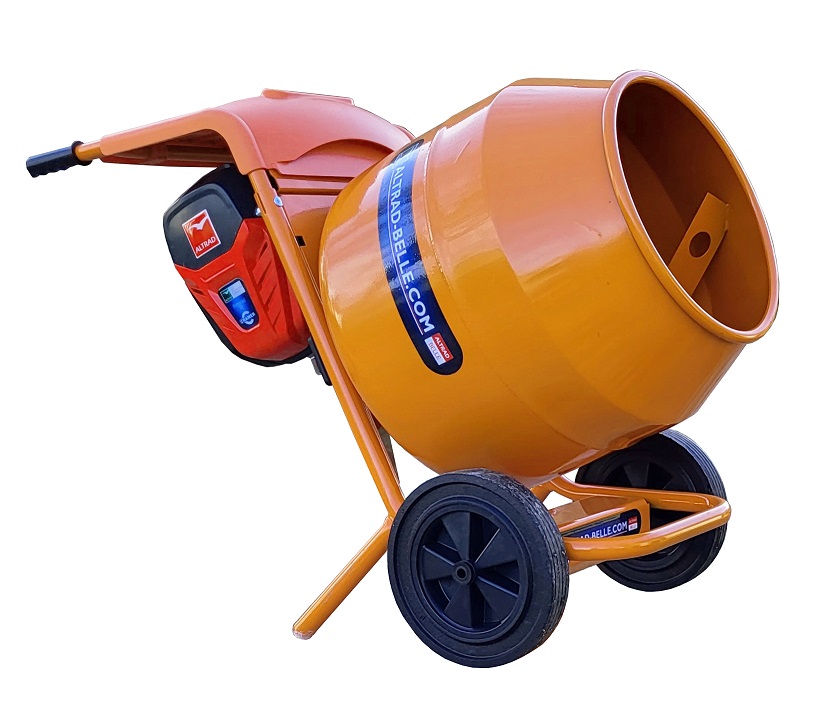

Belle Minimix 150E+ Cement Mixer Battery 5ah

1,550.00

Incl. VAT


Belle Minimix 150E+ Cement Mixer Battery 5ah

Compact and portable for easy transportation.
Mixes a full barrow load of concrete or mortar.
Complete with barrow height swivel and stand.
Full thermal overload protection.
Proven robust and durable design.
Extra thick drum with quick mix paddles.
Heavy-duty sealed cast gearbox for longer life.
Large choice of engines and electric motors to suit the user.
Battery ( 1 x 5ah Battery + Charger Kit )
CE compliant, with NVR (No Volt Release) safety power switch

DUE TO SIZE & WEIGHT OF THIS PRODUCT A SHIPPING CHARGE MAY APPLY

SHIPPED IN BOX, ASSEMBLY REQUIRED

Assembly can be arranged at extra cost.

Belle Minimix 150E+ Cement Mixer Battery 5ah

Compact, heavy duty, professional tip-upĀ Cement MixerĀ with an emission free, Li-ion battery powered motor for all your mixing requirements, outdoor usage, indoor usage and poorly ventilated areas. The Minimix 150E+ can be used on or off its stand and is the ideal portable and robust solution for mixing concrete & mortar but without any engine emissions or the need for an electrical power supply….Building A Sustainable Future!Ā  Ideal for use with the Altrad Belle Warrior Wheelbarrow

Proven robust and durable design.
ā— Compact & portable for easy transportation.
ā— Mixes a full barrow load of concrete or mortar.
ā— 82vĀ 5AhĀ orĀ 8AhĀ battery options.
Ā Ā Ā Ā Ā Ā Ā Ā –Ā 5AhĀ = 2.0m3 mix output on 1 single charge – the equivalent of 20*Ā mixes of concrete / mortar.
–Ā 8AhĀ = 3.0m3 mix output on 1 single charge – the equivalent of 30*Ā mixes of concrete / mortar.
ā— Environmentally friendly, emission free for use indoors & in poorly ventilated areas such as basements and tunnels.
ā— Can be operated in environmentally sensitive areas, such as green spaces, nature reserves, national parks, rural railway cuttings and emissionĀ Ā Ā Ā Ā Ā Ā Ā Ā controlled urban areas, without any exhaust emissions.
ā— Low noise offers increased working hours and usage in noise restricted areas.
ā— No routine power unit maintenance eliminates servicing or costly downtime due to repairs. No blocked carburettors.
ā— Cordless design gives added flexibility when positioning the mixer for operation.
ā— Complete with barrow height swivel and stand.
ā— Extra thick drum with quick mix paddles.
ā— Quick release / connect battery with digital power level display.
ā— Heavy-duty sealed cast gearbox for longer life.
ā— Ideal for use with the Altrad Belle Warrior Wheelbarrow…The Ultimate Combo!!

Model
Part
Number
Motor Power
(Hp) – (kW)
Max. Drum
Capacity
(Ltr)


Max. Mixing
Capacity
(Ltr)



Drum
Speed
Paddle
Type
Off-Stand
Dimensions
W x L x H (mm)
On-Stand
Dimensions
W x L x H (mm)
Weight Without Stand (Kg)Ā
Minimix 150E+ – 82v Battery
Powered
(1 x 5Ah Battery & 1 x Battery Charger)
M83B 2.0 – 1.5 130 90 24rpm 2 x Rapid Mix 597 x 1211 x 890 1057 x 1227 x 1432 59
Minimix 150E+ – 82v Battery Powered
(1 x 8Ah Battery & 1 x Battery Charger)
M84B 2.0 – 1.5 130 90 24rpm 2 x Rapid Mix 597 x 1211 x 890 1057 x 1227 x 1432 59
Minimix 150E+ Replacement Drum CMS12SP
Model
Part
Number
Max.
Voltage (v)
Nominal
Voltage (v)
Energy
Rating (Wh)
Energy
Capacity (Ah)
80% Charge
Time (mins)
100% Charge
Time (mins)
Dimensions
W x L X H (mm)
Weight
(Kg)

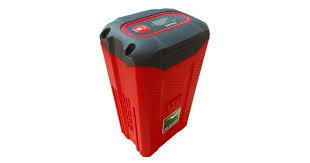

82v 5Ah Li-Ion Battery OPP/13/DIO 82 72 360 5 28 39 90 x 120 x 214 2.8
82v 8Ah Li-Ion Battery OPP/14/DIO 82 72 580 5 48 65 90 x 120 x 240 3.9



STATIC DIMENSIONS





*



















the figures are based on standard mix rates of 3 minutes per mix.

Belle Cement Mixer Battery 5ah

Battery ( 1 x 5ah Battery + Charger Kit )

DUE TO SIZE & WEIGHT OF THIS PRODUCT A SHIPPING CHARGE MAY APPLY

SHIPPED IN BOX, ASSEMBLY REQUIRED

Assembly can be arranged at extra cost.
