|Power output||0,9/1,2 kW/PS|
|Weight 1)||4,6 kg|
|Sound pressure level with plastic tool 2)||94 dB(A)|
|Sound power level 2)||107 dB(A)|
|Sound power level with metal tool 2)||107 dB(A)|
|Vibration level, left/right with plastic tool 3)||6,5/6,3 m/s²|
|Sound pressure level with metal tool 2)||93 dB(A)|
|Vibration level, left/right with metal tool 3)||4,5/6,5 m/s²|
|Total length 4)||178 cm|
|Cutting tool||Grass cutting blade 230-2|
1) Weight excluding fuel, cutting tool and guard
2) K-factor according to DIR 2006/42/EC = 2.5 dB (A)
3) K-factor according to DIR 2006/42/EC = 2m / s ²
4) Without cutting tool

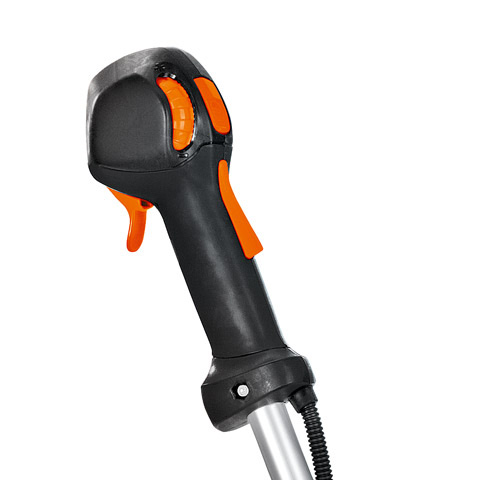

STIHL ECOSPEED enables the user to control the brushcutter engine speed individually on the operating handle.

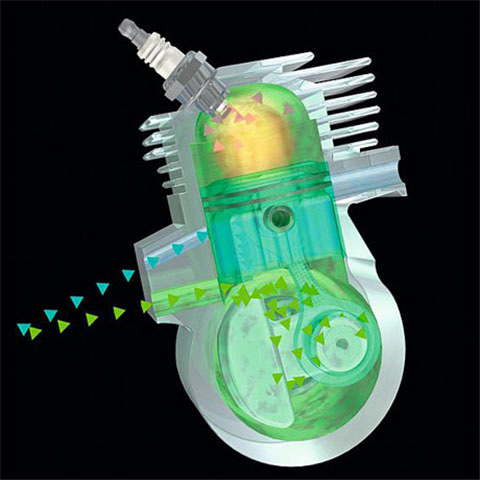

2-stroke engine with stratified charge. A fuel-free layer of air is created between the burned charge in the combustion chamber and the fresh charge in the crankcase, reducing the amount of fuel lost during the charge cycle. This results in more power with a lower weight, up to 20% lower fuel consumption than regular 2-stroke engines and significantly reduced exhaust emissions.

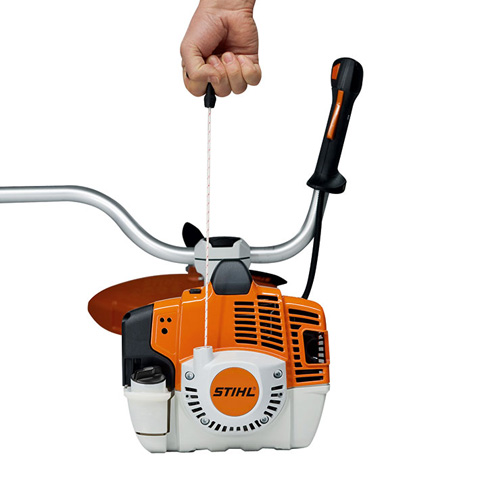

STIHL ErgoStart (E)
STIHL ErgoStart cuts the effort required to start the tool by half, while the starter cord can be pulled at just one third of the normal force. A coil spring between the starter cord and the crankshaft smoothes out force peaks, making them virtually undetectable through the cord itself.
Intense vibration at the handles of power tools can lead to long-term effects on blood vessels in the hands and arms. STIHL has therefore developed an effective anti-vibration system whereby the oscillations from the machine’s engine are dampened which significantly reduces vibrations at the handles.

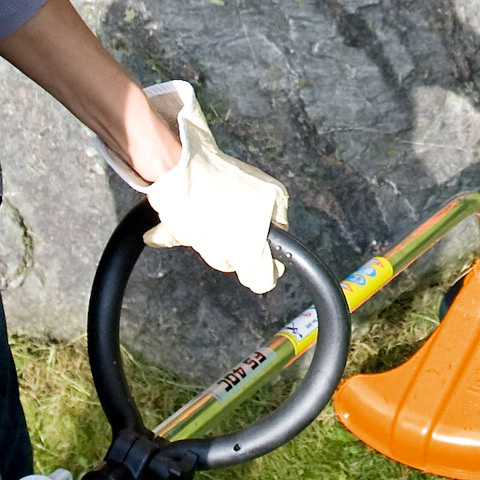

Loop handle (R)
The loop handled grass trimmers and brushcutters are ideal for working in areas where space is limited, e.g. thinning between bushes and shrubs.

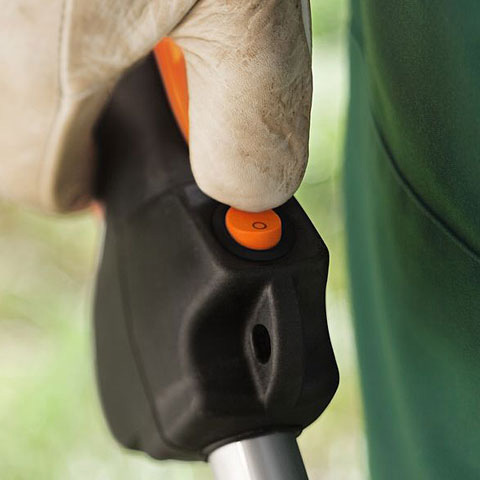

Simplified starting system
Simply set the choke, pump the fuel primer, pull the starter cord and away you go! The running machine then switches off after a brief press of the stop button. Once the machine is at a standstill, the ignition activates again automatically. Thus the ignition is always ready for starting.

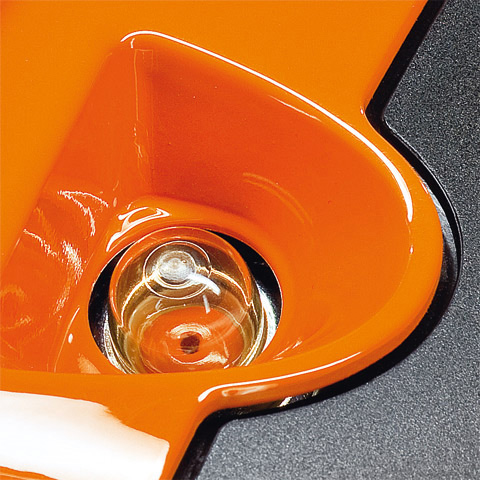

Manual fuel pump (Purger)
A small fuel pump delivers fuel to the carburettor at the touch of a button. This reduces the number of starting strokes required following extended breaks in operations.

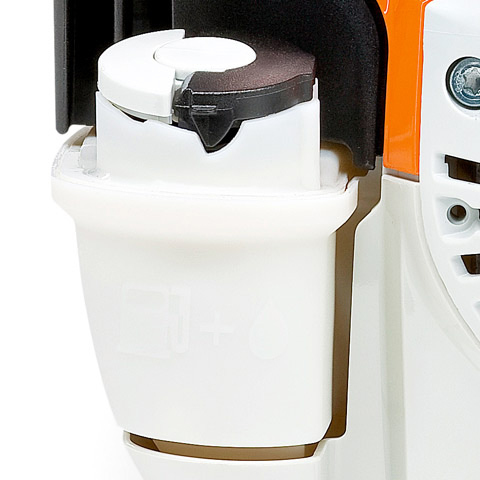

Large fuel tank
The transparent fuel tank ensures long working intervals with fewer fuel stops. The level is easily visible from the outside. Easy to refuel through a large, easily accessible tank opening. (similar to illustration)
It is important to protect your eyes from flying particles and harmful UV radiation. Therefore a pair of safety goggles/glasses are supplied with the the machine. Note: Additional face protection must be worn when working with brushcutters.
